Sliding gate
motor industrial
Wide, heavy industrial sliding gates require motors sized for intensive use: LineaMatic H up to 800 kg and 10 m (15 cm/s), STA 500 FU inverter drive up to 2,500 kg and 17 m, self-locking gearbox, force limitation compliant with EN 12453. Hörmann offers a complete range of industrial sliding gate motors that Fermelux installs and maintains throughout the Grand Duchy.
Why choose Hörmann for your sliding gate
An industrial sliding gate is the first line of security for your site. Its motor must combine power, reliability and compliance with the strictest safety standards. Hörmann meets all three criteria.
Sized for heavy gates
Hörmann industrial sliding gate motors are designed to move heavy gates continuously: up to 2,500 kg with the STA 500 FU (floor-guided gate). Robust gear drive, hardened steel rack, long-life lubrication.
Self-locking gearbox for anti-intrusion
The worm gear is self-locking: in the closed position, the gate cannot be pushed manually. Permanent mechanical anti-intrusion security without additional electric locking.
Soft stop with frequency inverter
The LineaMatic H moves the gate at 15 cm/s; the STA 500 FU, with frequency inverter, adjusts speed on approach to the end stop for a progressive halt without shock.
Force limitation EN 12453
Force limitation complies with EN 12453: if the gate encounters an obstacle during closing, it stops and reverses. Person and vehicle safety guaranteed.
Integrable access control
Hörmann controllers accept all access control devices: RFID readers, intercoms, barrier arms, magnetic loops, LPR cameras. One ecosystem for complete perimeter security.
Standard manual release
In the event of power failure or motor malfunction, the gate is mechanically released by key and can be moved by hand. Access guaranteed under all circumstances.
Specifications sliding gate motor
Hörmann motor range for industrial sliding gates, sized according to gate weight and width.
The industrial sliding gate range
Two motor families cover the full spectrum of industrial sliding gates: the LineaMatic H up to 800 kg and the STA 500 FU inverter drive up to 2,500 kg. Fermelux sizes the motor based on your gate's actual weight and your usage frequency.

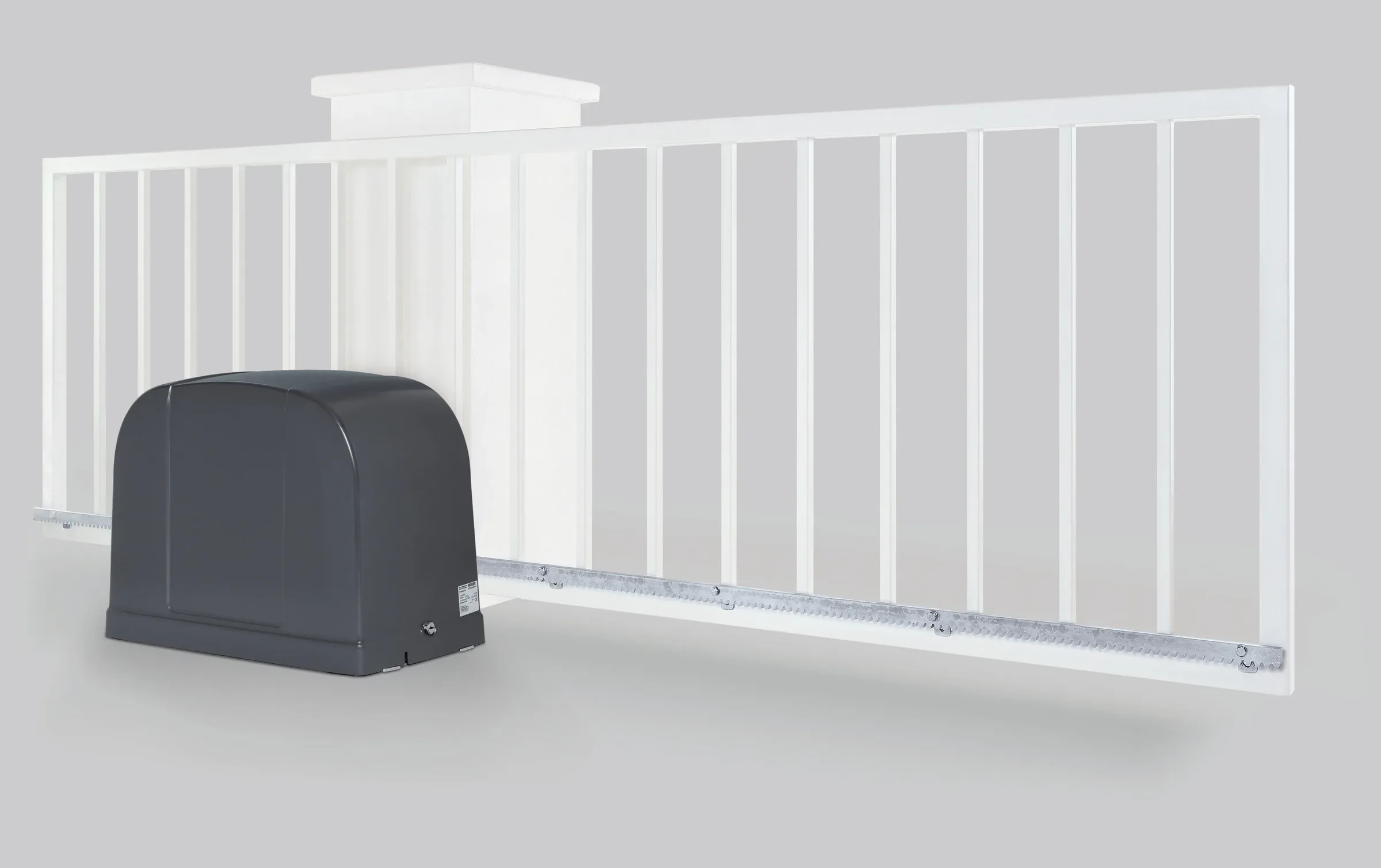

LineaMatic H - up to 800 kg
(Sliding door operator LineaMatic H)Hörmann LineaMatic H (230 V supply) for sliding gates up to 800 kg (600 kg cantilever) and 10 m opening. Self-locking gearbox, steel rack, EN 12453 force limitation. Speed 15 cm/s, 40 cycles/day. Supplied without radio.
- › 230 V
- › 800 kg max
- › 10 m opening
- › 15 cm/s
- › Self-locking

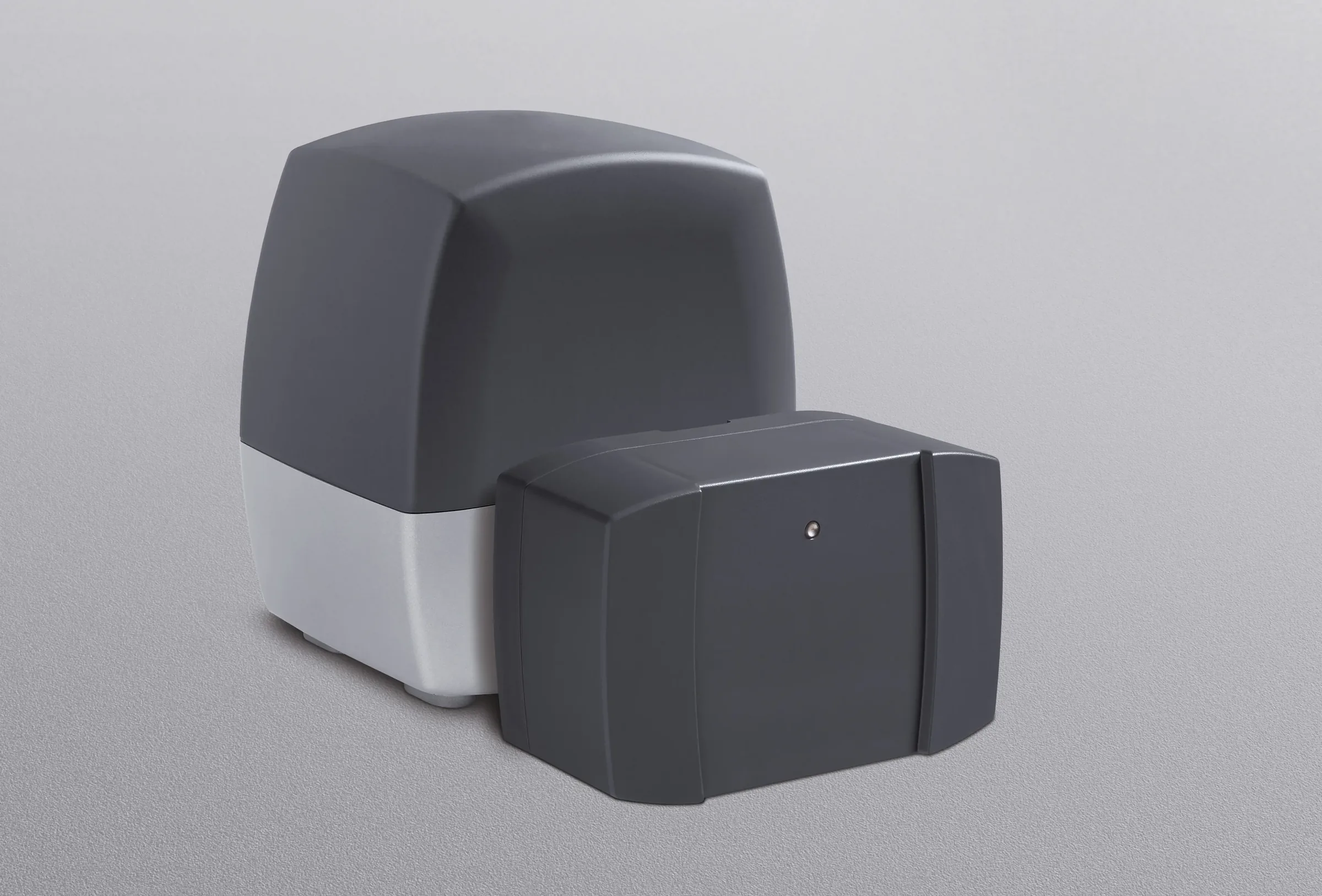

STA 500 FU - up to 2,500 kg
(Sliding door operator STA 500 FU)Hörmann STA 500 FU for heavy industrial sliding gates up to 2,500 kg (floor-guided, 1,800 kg cantilever) and 17 m opening. Frequency inverter, 560 controller with BlueControl app, up to 100 cycles/day. The choice for logistics and industrial sites with intensive traffic.
- › 560 controller
- › 2,500 kg max
- › 17 m opening
- › 100 cycles/day
- › Frequency inverter
Secure and automate your access
An industrial sliding gate is often the main entry point to the site. Access control and signalling are as important as the motor itself.
Integrated microprocessor controller
Controller integrated in the motor housing with digital display, programmable automatic closing times, cycle counter, error diagnosis. Inputs for 2 to 4 command devices depending on model.
- › Digital display
- › Auto close
- › Cycle counter
- › 2-4 inputs
BiSecur remote HSE 2/4 BS
Hörmann BiSecur 868 MHz radio remote, AES 128-bit encryption. 2 or 4 channels for gate + garage door + lighting. Protected against signal copying.
- › BiSecur 128-bit
- › 868 MHz
- › 2 or 4 channels
- › Rolling code
An industrial sliding gate project in Luxembourg?
Free on-site technical visit: dimensional survey, weighing of existing gate, ground assessment (rail or top guide), motor and access control selection. Free, fast detailed quotation. No obligation.
Compliant with European standards
Motorising an industrial sliding gate is subject to strict safety standards. Every Fermelux installation is delivered with CE declaration of conformity and commissioning report.
EN 13241 - Motorised doors and gates
Harmonised European standard covering the safety and performance of motorised industrial, commercial and residential doors.
EN 13241:2003+A2:2016EN 12453 - Safety in use
Maximum closing forces, force limitation, anti-crushing requirements. Tested at commissioning and during periodic maintenance.
EN 12453:2017EN 12445 - Test methods
Methods for measuring closing forces and response times of safety devices. Applied during commissioning and annual inspections.
EN 12445:2000+A1:2006CE marking & documentation
Every gate motorised by Fermelux receives its CE declaration of conformity, commissioning report, force measurement reports and user manual.
Machinery Directive 2006/42/ECWhere to install a motorised sliding gate?
Industrial sliding gates are ubiquitous in Luxembourg: business parks, logistics sites, car dealerships, public facilities. Here are the most common cases.

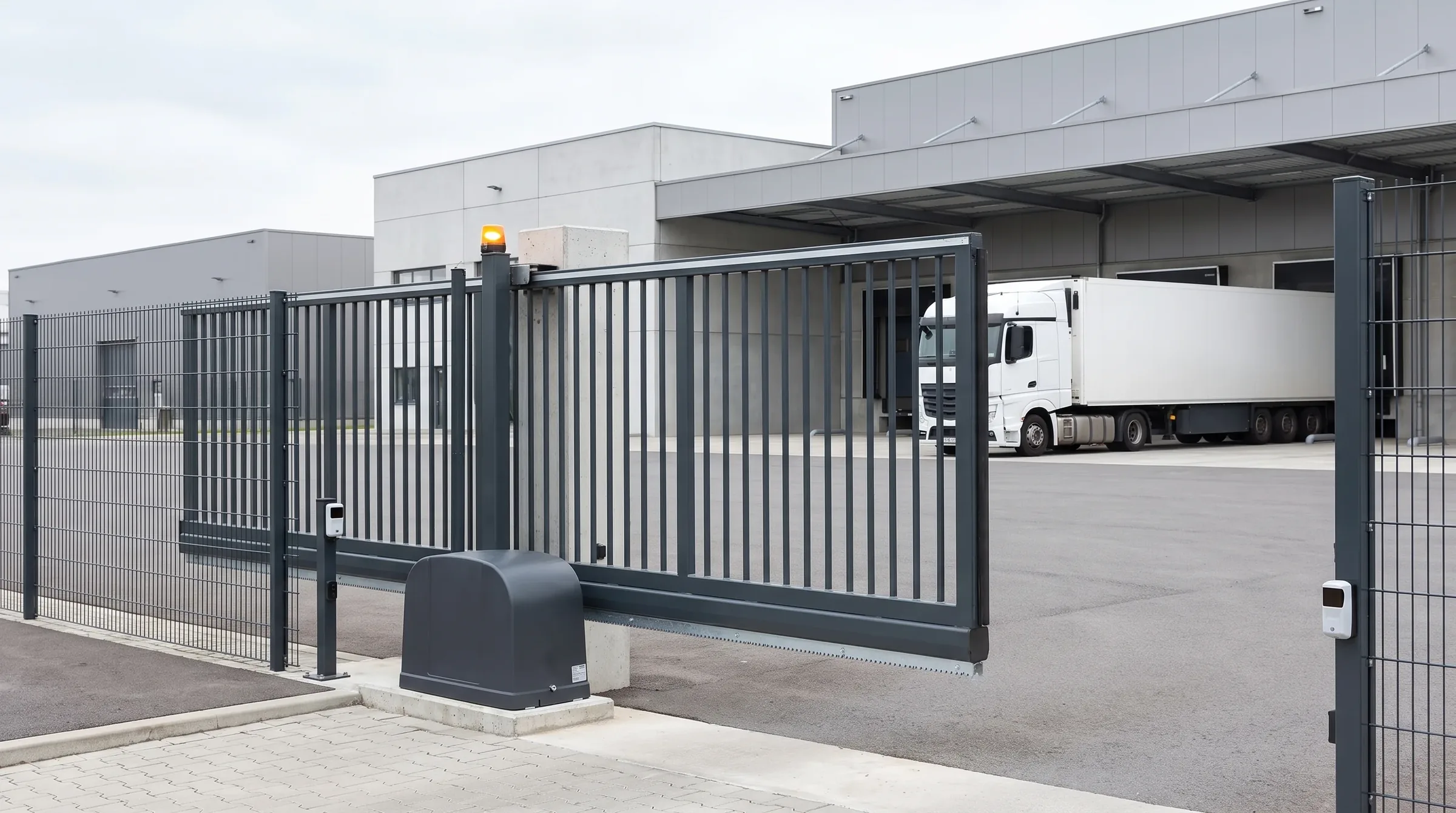

Business park / industrial estate
Sliding gate 10 to 15 m, lorry and car access, moderate to intensive daily traffic. Access control via badge or intercom.
Logistics centre / loading dock
Gate 15 to 20 m, heavy goods vehicle access, intensive traffic 30+ operations/day. Speed and absolute reliability required.
Sensitive site (data centre, chemical plant)
Reinforced sliding gate with high perimeter security requirements. Multi-factor access control, LPR camera, video intercom IP.
Car dealership / showroom
Large facade sliding gate, frequent opening for customer vehicles and deliveries. Aesthetic appearance important (aluminium or railed gate).
Customise your sliding gate
Hörmann industrial sliding gate motors accept numerous safety and access control accessories to adapt to each site.
How much does an installed gate motor cost?
Prices on a free quote in Luxembourg, including: new Hörmann motor for existing sliding gate in good condition, standard electrical connection, photocells, light, commissioning and CE documentation. Excluding new gate, civil works (foundation, ground rail) and advanced access control.
LineaMatic H - up to 800 kg
LineaMatic H motor for sliding gates up to 800 kg and 10 m. Photocells, flashing light, safety edge as standard. Manual key release.
- Self-locking LineaMatic H
- Photocells + light + safety edge
- Hardened steel rack
- Installation and commissioning
- CE documentation
STA 500 FU - standard gates
STA 500 FU motor for common industrial sliding gates. Exit magnetic loop, RFID reader or coded keypad. The standard for Luxembourg business parks.
- STA 500 FU motor
- Exit magnetic loop
- RFID reader or coded keypad
- Installation and commissioning
- Hörmann warranty
STA 500 FU - up to 2,500 kg
STA 500 FU inverter drive (up to 2,500 kg), complete access control (RFID + loops + traffic light + GSM). Turnkey for demanding logistics and industrial sites.
- STA 500 FU + 560 controller
- RFID + magnetic loop × 2
- Traffic light + GSM Control
- Installation and commissioning
- Maintenance contract year 1
Personalised, fast quotation following a free on-site technical visit - no obligation
Request my free quotationFrequently asked questions
Answers to our customers' most common questions.
Your sliding gate motor installed by Fermelux
We operate throughout the Grand Duchy for business parks, logistics sites, distribution centres, dealerships and public facilities. Free on-site technical visit, free and fast quotation, turnkey installation.
