Hörmann code keypads
open without a key, without a smartphone
No more need for a hand transmitter or a smartphone: enter your PIN code on the keypad and your garage door opens. The Hörmann Codetaster range covers residential needs (FCT radio) and professional uses (CTV metal, STAP key-operated, FFL / FL 150 biometric readers). All models are designed for outdoor installation and withstand rain, cold and sun.
Keyless access without a hand transmitter
A Codetaster code keypad frees you from the constraints of lost or forgotten hand transmitters. The code is in your head, you carry it everywhere and you can change it whenever you wish. Ideal for children, rentals, delivery drivers and home services.
No more lost hand transmitters
No more drama of a lost, forgotten or broken hand transmitter. The PIN code is memorised by the user and available at any time. Practical for children coming home from school, for partners without a vehicle and for anyone who does not want to carry an additional device.
Customisable and revocable codes
You set and change your code as you wish. When an employee leaves, a seasonal tenant departs or a home service ends, simply change the code. The FCT 10 BS accepts up to 10 access codes, each linked to one radio function.
Weather-resistant IP 54 to IP 65
All Codetaster code keypads are designed for outdoor installation. Protection ratings range from IP 54 (splash protection) to IP 65 for robust models, with die-cast zinc housings and stainless-steel plates on the CTV and CTP models.
BiSecur radio or wired depending on the model
The FCT models communicate via BiSecur radio at 868 MHz with AES 128-bit encryption - easy installation, no wiring to the operator. The CTV, CTR, CTP and STAP 50 models are wired, with an evaluation unit installed inside the garage, for even higher security (no exploitable radio signal).
Backlit keys for night use
The FCT 3 BS, FCT 10 BS, CTP 3-1 and CTV 3 models feature illuminated or backlit keys, essential for evening or night-time use in front of a garage without outdoor lighting.
Flush- or surface-mounted installation
Most keypads can be flush-mounted (Unterputz) in a wall or surface-mounted (Aufputz). Fermelux chooses the configuration according to your support (brick, concrete, wood, metal) and provides the matching housing.
The specifications of the Codetaster range
Official Hörmann data for the Codetaster code keypad and fingerprint reader range. Specifications vary depending on the model.
Six keypads, one for every use
From a simple plastic radio version to the professional metal keypad and the biometric reader for 150 fingerprints, the Codetaster range covers every budget and every residential, commercial or tertiary use.
FCT 3 BS
(Funk-Codetaster FCT 3 BS)3-function BiSecur radio keypad with illuminated keys. Light grey RAL 7040 plastic housing, flush- or surface-mounted installation. The entry-level residential model: simple, effective, no wiring to the operator.
- › 3 functions
- › BiSecur radio 868 MHz
- › Illuminated keys
- › Light grey RAL 7040

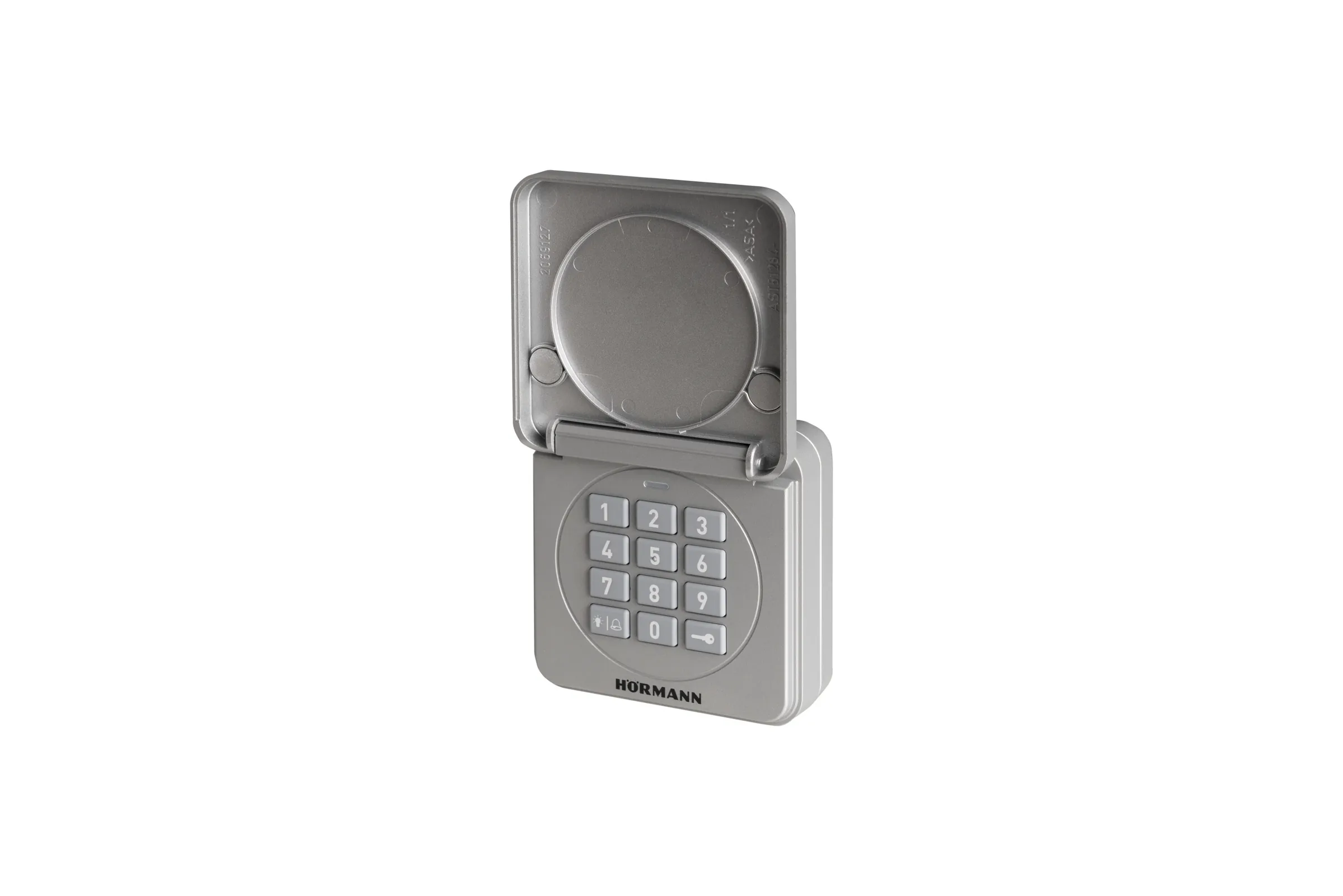

FCT 10 BS
(Funk-Codetaster FCT 10 BS)10-function BiSecur radio keypad with protective flap and illuminated keys. White aluminium lacquered plastic housing RAL 9006. Handles up to 10 functions (garage, gate, lighting, etc.), each with its own access code.
- › 10 functions
- › BiSecur radio
- › Protective flap
- › White aluminium RAL 9006

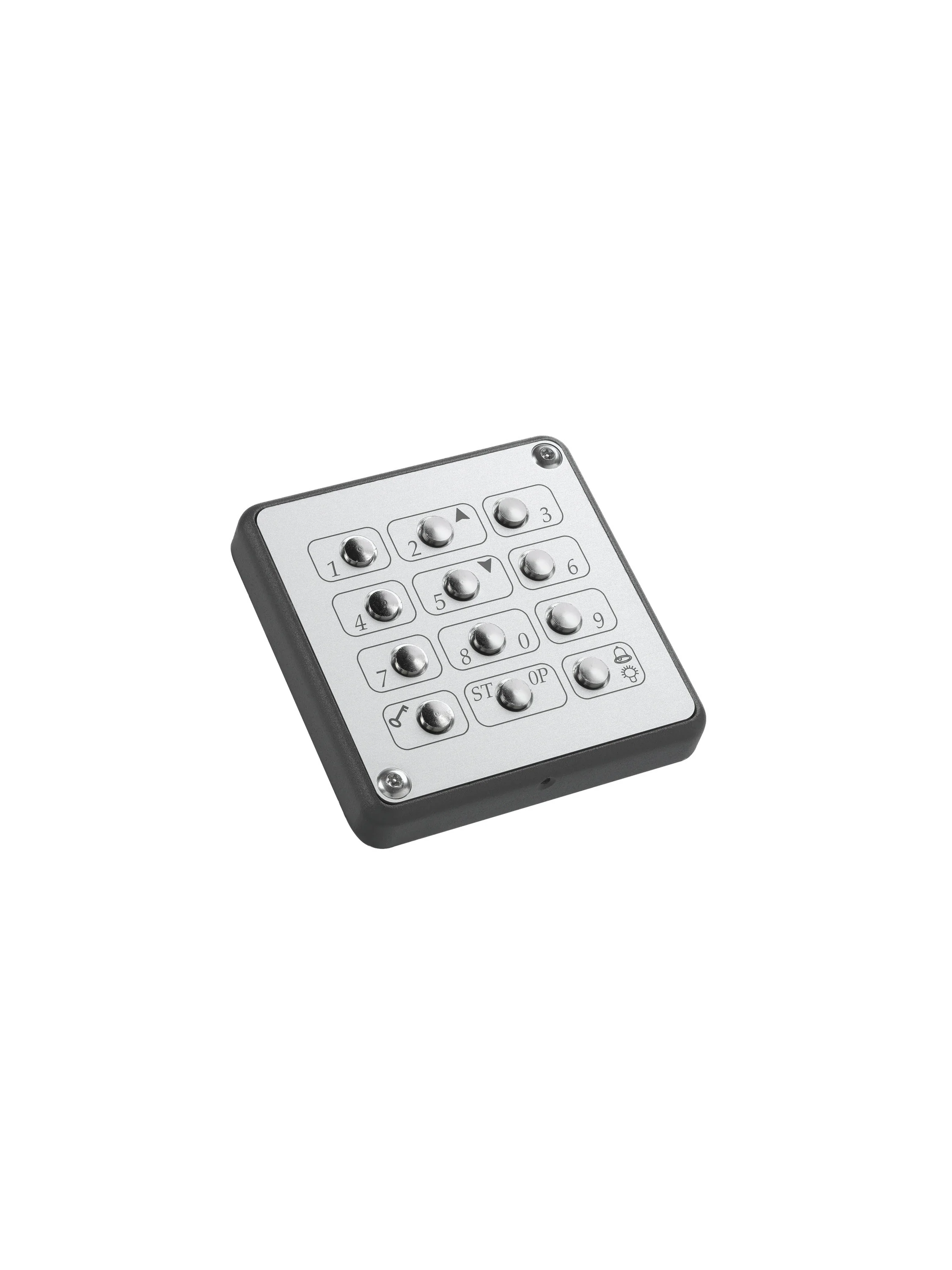

CTV 3-1
(Codetaster CTV 3-1)Ultra-robust wired keypad with metal keys: 3 outputs (2 door commands + light/doorbell), up to 20 codes of 4 to 6 digits. Die-cast zinc housing RAL 9006 with stainless-steel plate. The reference model for professional installations, joint ownership buildings and vandal-exposed locations.
- › 3 outputs
- › Die-cast zinc + stainless steel
- › Vandal-resistant metal keys
- › Wired

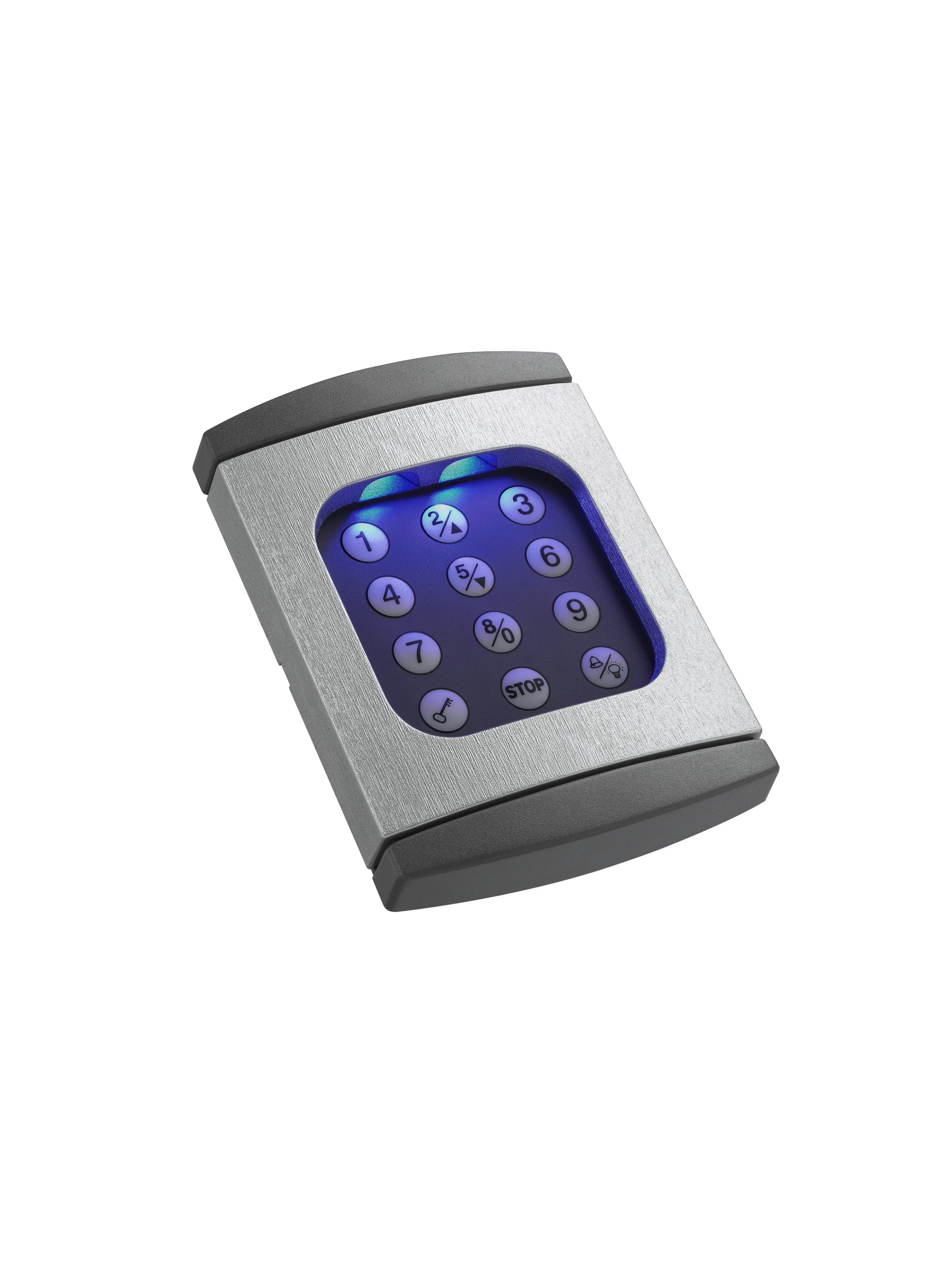

CTR 1b-1 / CTR 3b-1
(Codetaster CTR 1b-1 / CTR 3b-1)Wired keypad with 1 or 3 relays and a light grey RAL 7040 plastic housing. Cost-effective solution for wired residential installations where radio is not desired. Evaluation unit supplied for installation inside the garage.
- › 1 or 3 relays
- › Wired
- › Evaluation unit included
- › Light grey RAL 7040

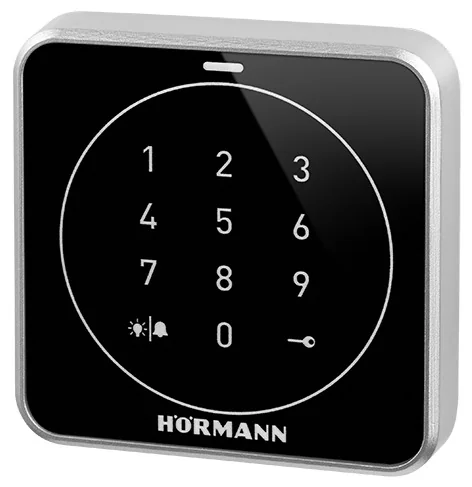

CTP 3-1
(Codetaster CTP 3-1)High-end wired capacitive keypad with a black touch surface and backlit legend: 3 outputs (2 door commands + light/doorbell). Die-cast zinc housing RAL 9006. Modern aesthetics and professional use.
- › 3 capacitive outputs
- › Black touch surface
- › Backlit legend
- › Die-cast zinc

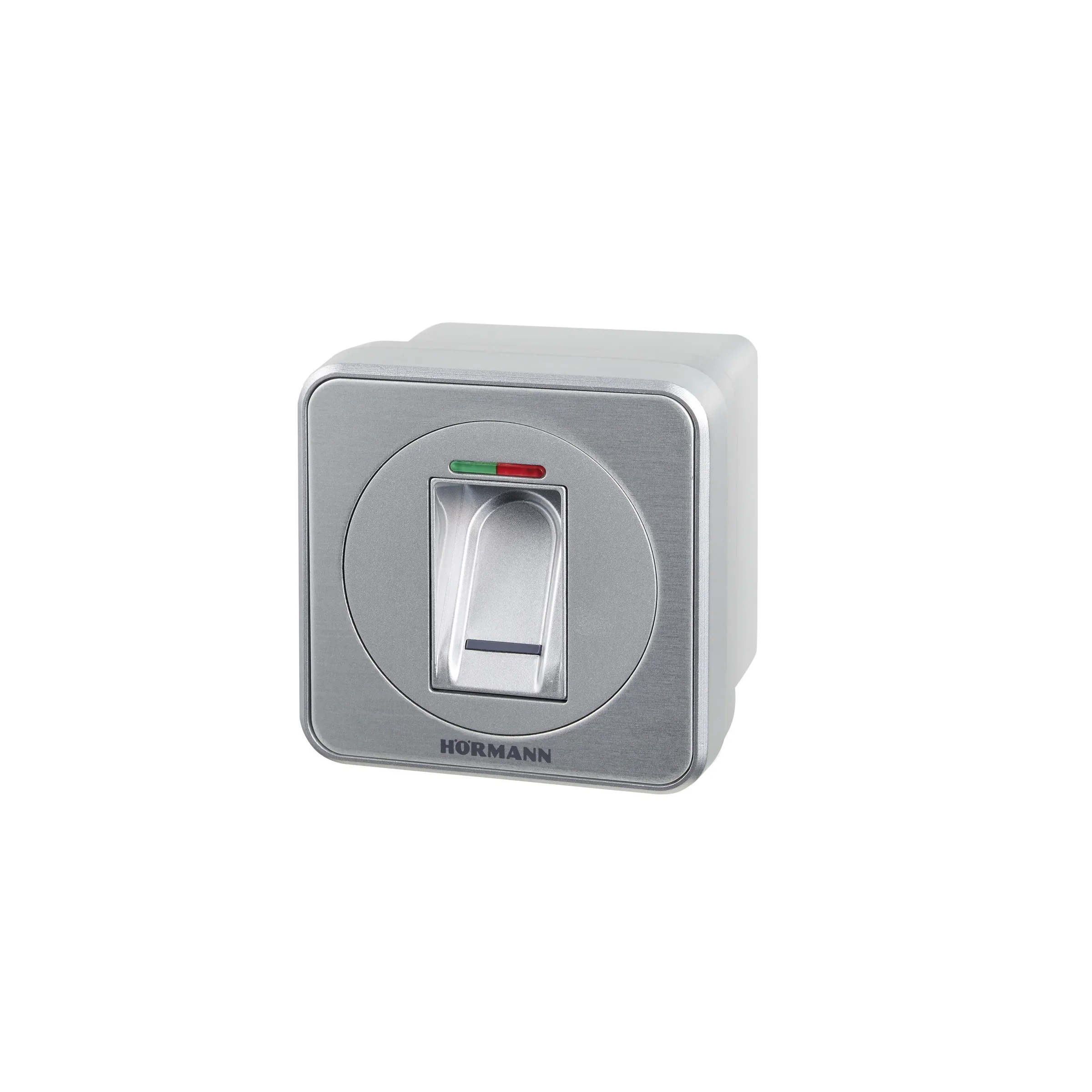

FFL 25 BS / FL 150
(Funk-Fingerleser FFL 25 BS / FL 150)2-function fingerprint readers. The FFL 25 BS runs on BiSecur radio and accepts up to 25 fingerprints. The FL 150 is wired and supports up to 150 fingerprints - ideal for joint ownership buildings, offices or large families.
- › 2 functions
- › 25 or 150 fingerprints
- › BiSecur or wired
- › Biometric
Compatible with residential Hörmann operators
Codetaster code keypads are designed for all residential Hörmann operators. FCT / FFL radio models require an operator fitted with a BiSecur receiver. Wired models connect to the impulse input or the HCP adapter of the operator.
SupraMatic 4 E / P
Premium sectional door operator. Directly accepts FCT / FFL radio models via native BiSecur, as well as wired models via impulse input or HAP 1 HCP adapter.
- › Native BiSecur
- › Impulse input
- › Sectional doors
- › Premium residential
ProMatic 4
Standard sectional door operator. Compatible with FCT radio and wired keypads via impulse input.
- › Native BiSecur
- › Impulse input
- › Sectional doors
- › Residential
RotaMatic
Swing gate operator. Codetaster code keypads work via BiSecur radio or wired via the gate control cabinet.
- › Native BiSecur
- › Swing gate
- › 1 or 2 leaves
- › Outdoor
LineaMatic
Sliding gate operator. Same integration: FCT radio models or wired via control cabinet.
- › Native BiSecur
- › Sliding gate
- › Outdoor
- › Residential
Your code keypad Hörmann Codetaster installed by Fermelux
Our technicians install and configure your Codetaster keypad in Luxembourg: drilling, wiring or radio pairing, code programming, functional testing and user training. Free, fast quote.
Keypads compliant with European standards
All Codetaster keypads comply with European radio equipment directives, AES encryption standards and IP protection requirements.
AES 128-bit encryption (FCT / FFL)
The FCT and FFL BiSecur radio models encrypt their communications with 128-bit encryption (fixed code, rolling code and manufacturer key), which protects them against signal copying.
FIPS 197 AESRED Directive 2014/53/EU
BiSecur radio models comply with the European Radio Equipment Directive and carry the mandatory CE marking.
Directive 2014/53/EUIP 54 to IP 65 rating
Protection against splashing water (IP 54), water jets (IP 65) and dust. Compliance with the EN 60529 standard for outdoor installation.
EN 60529WEEE and RoHS
Compliance with European directives on waste electrical and electronic equipment and on the restriction of hazardous substances.
WEEE / RoHSWhich keypad for which use
Based on the installations we regularly carry out in Luxembourg. The right choice depends on the level of exposure, the number of users and the budget.
Single-family residential home
Daily family access, 2 to 6 users, moderate outdoor exposure.
Airbnb seasonal rental
Different tenants every week, you need to grant/revoke access quickly.
Office or small shop
Several employees, visitors, delivery drivers. Potential exposure to vandalism.
Joint ownership / residential building
Large number of users, need for individual management and audit trail.
Family with children
Children coming back from school without a key or a smartphone, parents who sometimes forget their hand transmitter.
Business garage / workshop
Intensive use, dusty or humid environment, risk of shocks and vandalism.
The complements for your Codetaster keypad
Accessories that extend the capabilities of your Codetaster keypad or simplify its installation.
How much does a code keypad cost in Luxembourg
Indicative budgets excl. VAT for hardware and installation by Fermelux. Installation includes drilling, wiring or radio pairing, programming and functional testing.
Residential radio keypad
FCT 3 BS BiSecur radio installed surface- or flush-mounted. Quick installation, no wiring to the operator.
- FCT 3 BS (3 codes)
- Flush or surface mounting
- Operator pairing
- Initial code programming
- Hörmann warranty
Multi-user keypad
FCT 10 BS radio with 10 codes or CTV 3-1 wired vandal-resistant metal. For large families, offices or rentals.
- FCT 10 BS or CTV 3-1
- Wiring or radio pairing
- Evaluation unit (if wired)
- Code programming
- User training
- Hörmann warranty
Biometrics or joint ownership
FL 150 wired fingerprint reader up to 150 fingerprints, or TTR 1000-1 RFID transponder 1000 badges. Carefully flush-mounted installation.
- FL 150 or TTR 1000-1
- Complete wiring
- Evaluation unit
- Fingerprint or badge programming
- Manager training
- Hörmann warranty
Free, fast quote - Fermelux Luxembourg
Request a keypad quoteFrequently asked questions
Answers to our customers' most common questions.
Your keypad Hörmann Codetaster installed by Fermelux
Fermelux installs the complete range of Codetaster code keypads in Luxembourg: drilling, wiring or radio pairing, programming, testing and training. Free, fast quote.
